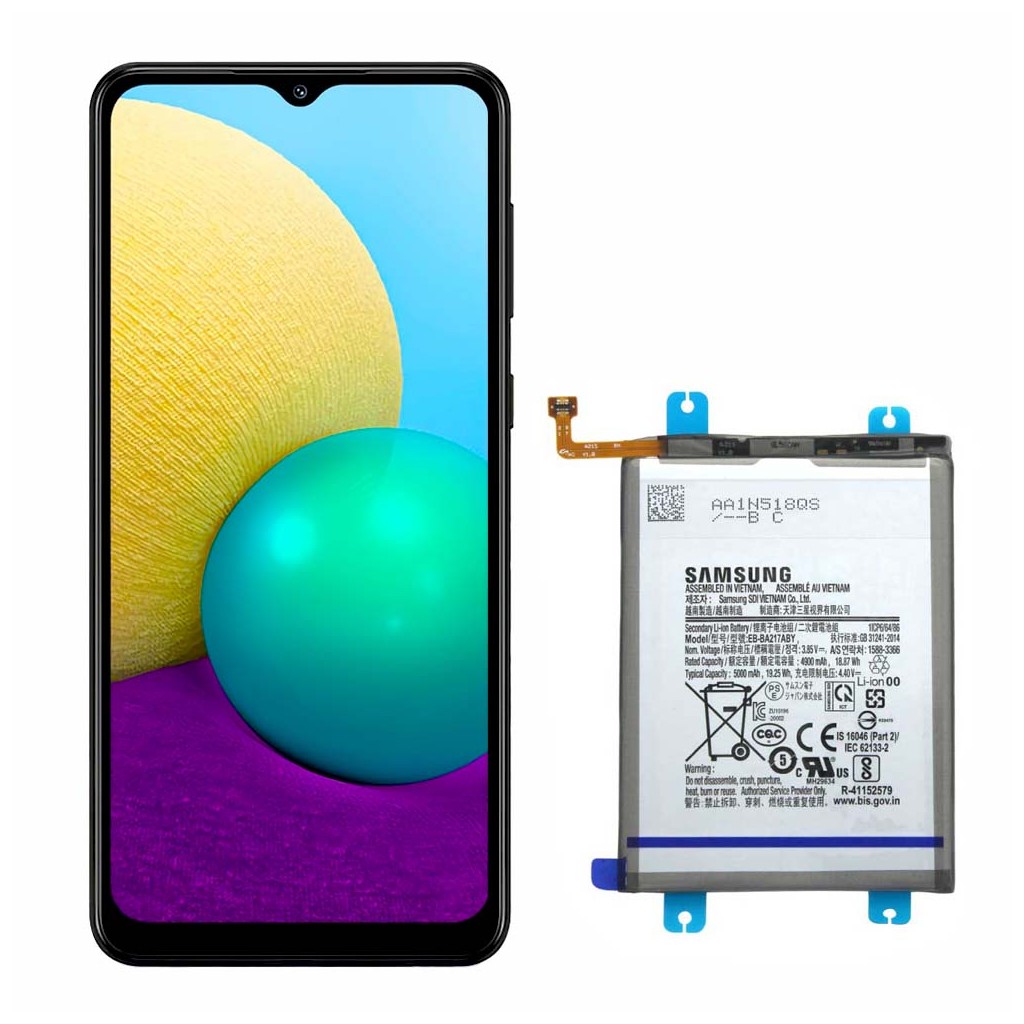

اگر به دنبال تعویض باتری گلکسی آ ۰۲ هستید یا قصد خرید باتری گلکسی آ ۰۲ را دارید، در این صفحه میتوانید اطلاعات مفیدی درباره این باتری و ویژگیهای آن پیدا کنید.
Real workshop experiences in Tehran
Sudden shutdown issue with Samsung Galaxy A02
When a Samsung Galaxy A02 comes to my bench and shuts down randomly, the first thing I do is not jump to the conclusion “the battery is dead”. In the workshop I have seen many owners panic, but the real cause can be hidden deep inside the power circuit. Below I walk you through a few real cases that happened in the past months, how we diagnosed them, and why a proper test is always the only reliable way.
Real experiences
Case 1 – Power IC failure, not the battery – A young man brought his A02 that turned off during a call. The battery indicator showed 80 % and the charger was working. We ran a voltage test on the battery: 4.15 V, which is normal. The real culprit turned out to be the power management IC that had a cracked solder joint. After re‑soldering the IC, the phone stayed on for hours without a hiccup. The battery was left untouched.
Case 2 – Swollen battery and overheating – A middle‑aged woman noticed the back of her phone bulging and felt heat after a short video. The battery was visibly swollen, and the device would shut down as soon as the temperature rose above 35 °C. We replaced the swollen Li‑Polymer cell with a brand‑new genuine unit (5000 mAh). The phone cooled down immediately and the shutdown problem vanished.
Case 3 – Motherboard damage misdiagnosed as battery problem – A customer had replaced the battery a month earlier, yet the phone still rebooted randomly. He assumed the new battery was faulty. We opened the device and found a cracked trace on the main board that caused intermittent power loss. After repairing the trace, the phone worked perfectly. The battery was fine.
Case 4 – Software calibration issue – An A02 kept showing “0 %” and then suddenly powered off, even though the charger was plugged in. No hardware fault was found. We performed a full battery calibration: discharge to 0 %, charge to 100 % without interruption, and clear the battery stats cache. After the calibration the phone displayed correct percentages and stopped shutting down.
Case 5 – Non‑original battery installed by a third party – A teenager bought a cheap replacement online. The phone lasted only a few minutes after a full charge and shut down unexpectedly. The voltage of that battery dropped to 3.2 V under load. We swapped it with our genuine 5000 mAh cell and the device returned to normal runtime.
Case 6 – Faulty charger cable, not the battery – A user complained that his A02 turned off while charging. The battery health read 95 %. We tested the Micro‑USB cable and found an internal break causing intermittent power. Replacing the cable solved the shutdown during charge, confirming the battery was healthy.
Real case table
| Model | Problem reported | Real cause | Outcome |
|---|---|---|---|
| Samsung Galaxy A02 | Random shutdown during call | Power IC solder crack | IC re‑soldered, battery unchanged |
| Samsung Galaxy A02 | Back swelling, overheating | Swollen Li‑Polymer battery | Battery replaced with genuine unit |
| Samsung Galaxy A02 | Frequent reboot after recent battery swap | Cracked motherboard trace | Board repaired, battery fine |
| Samsung Galaxy A02 | 0 % display then shutdown | Software calibration error | Battery stats calibrated, issue resolved |
| Samsung Galaxy A02 | Very short runtime, sudden off | Fake low‑quality battery | Genuine battery installed, performance normal |
Cost for in 2026
Standard replacement: ۹۰۰,۰۰۰ تومان
Time: ۱ تا ۲ ساعت
Common battery issues
- Fast battery drain
- Sudden shutdown
- Battery swelling
- Overheating during use
- Incorrect percentage display
- Incomplete charging
- Severe performance drop
Misdiagnosis cases
- Motherboard failure – often mistaken for a dead battery
- Power IC failure – the phone looks like it has a weak battery
- Software issue – calibration errors can mimic battery loss
- Faulty cable or charger – leads to shutdown while charging
- High app consumption – users think the battery is bad
In the above examples the problem was NOT the battery in three separate instances, reminding us that a thorough test is essential.
Trust building
From years of working on Samsung devices I have learned that not every shutdown is a battery problem. Sometimes the board itself is the villain, sometimes a cheap charger tricks you, and sometimes the software simply needs a reset. I never give a final opinion until I have measured voltage, checked the ICs, and run a full diagnostic. Misdiagnosis happens even to seasoned technicians, which is why I always double‑check before ordering a new part.
FAQ
What does a battery replacement for Samsung Galaxy A02 cost?
The standard price in our Tehran workshop is ۹۰۰,۰۰۰ تومان, including a ۶‑month warranty.
How long does the replacement take?
Usually between ۱ and ۲ ساعت, depending on the exact problem.
Why do batteries swell?
Swelling occurs when the internal cells degrade, gas builds up, or the battery is exposed to high temperature for a long period.
Is it risky to keep using a swollen battery?
Yes. A swollen cell can damage the back panel, press on the screen, or even leak hazardous chemicals.
Should I choose an original battery or a cheap copy?
Original or high‑quality replacements guarantee proper voltage stability and safety. Cheap copies often cause rapid drain, overheating, or sudden shutdown.
Conclusion
When your Samsung Galaxy A02 shuts down unexpectedly, the first step is to bring it to a trusted workshop for a proper diagnosis. Replacing the battery without testing can waste money and time, especially if the real issue lies on the motherboard or in the software. In my experience, a correct diagnosis saves both the device and the owner’s budget. If you live in Tehran and need a reliable battery replacement in Tehran, feel free to stop by Digital Service; we’ll test, explain, and fix the real problem.
