اگر به دنبال تعویض باتری سونی اکسپریا زد۵ هستید یا قصد خرید باتری سونی اکسپریا زد۵ را دارید، در این صفحه میتوانید اطلاعات مفیدی درباره این باتری و ویژگیهای آن پیدا کنید.
From shutdown to smooth performance – real workshop experiences

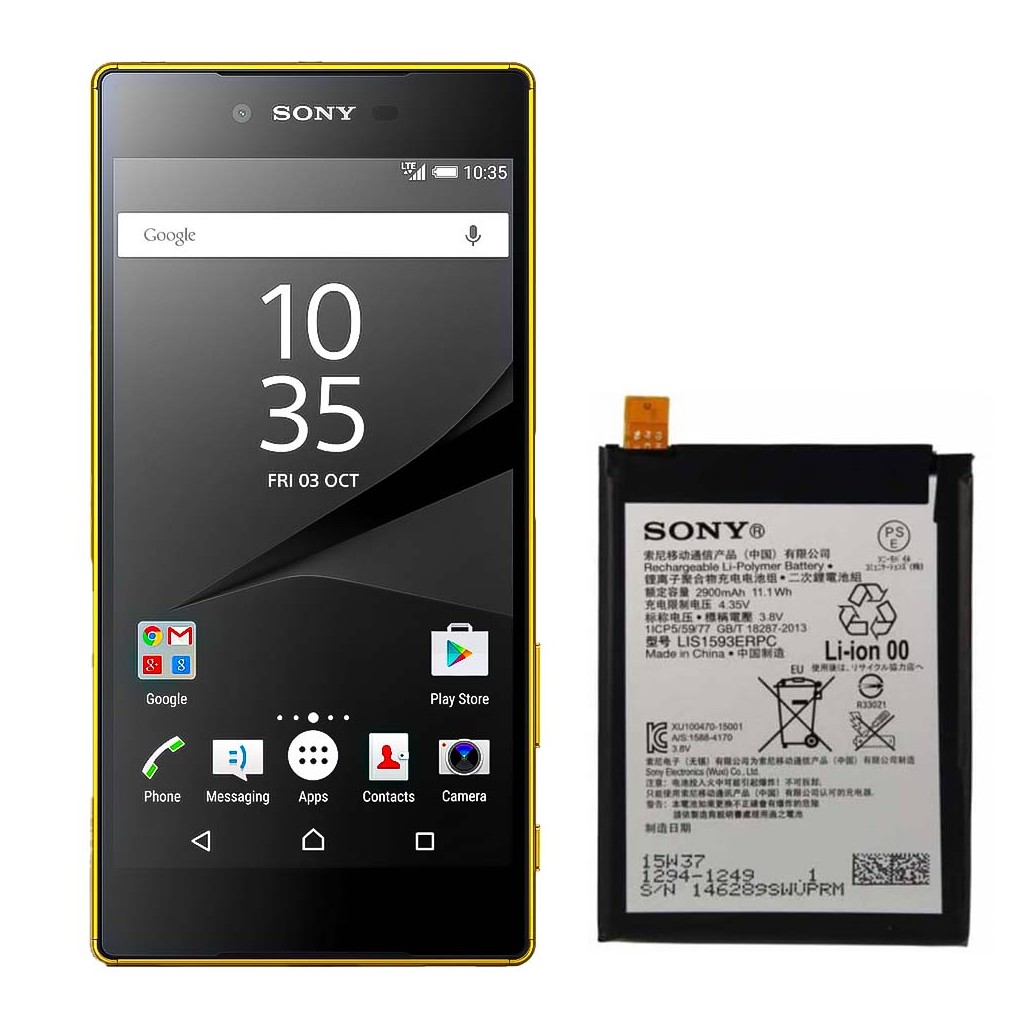

Cost for Sony Xperia Z5 battery replacement in 2026
Standard replacement: 900,000 Tomans
Time required: 1 hour to 2 hours
Common battery issues in Sony Xperia Z5
- Fast battery drain
- Sudden shutdown
- Battery swelling
- Overheating during charge or use
- Incorrect battery percentage display
- Incomplete charging
- Severe performance drop after a few minutes of use
Misdiagnosis cases we often encounter
- Motherboard failure masquerading as a dead battery
- Power IC malfunction
- Software glitch that misreports capacity
- Faulty cable or charger causing irregular voltage
- High‑consumption apps running in background
- Calibration issues after a previous replacement
Real experiences from the bench
Case 1 – Sudden shutdown, battery looks fine
A customer brought a Sony Xperia Z5 that turned off randomly, even when the battery indicator showed 80%. I first removed the battery and inspected it – no swelling, no corrosion. After a quick voltage test the cell was within spec. The real culprit turned out to be a failing Power Management IC on the main board. Replacing the IC restored stable operation. The customer left with a working phone and a clear explanation that the battery was not the problem.
Case 2 – Swollen battery, device overheats
Another client complained about the phone getting hot while charging and a noticeable bulge on the back cover. The battery was visibly swollen, so I isolated the cell, removed it safely, and installed a brand‑new genuine Sony battery. The overheating stopped immediately. I also cleaned the charging port and ran a quick calibration routine. The phone now runs cool, and the client appreciated the thorough safety check.
Case 3 – Fast drain after a previous replacement
A user reported that after I replaced the battery a month ago, the phone now drains from 100% to 15% in under two hours. I re‑opened the device, checked the connections, and discovered that the previous technician had used a low‑quality third‑party battery with a mismatched connector. I swapped it with our high‑quality 2900 mAh unit, performed a full charge‑discharge cycle, and the drain returned to normal. The lesson: not every cheap battery will behave like the original.
Case 4 – Wrong percentage display, battery fine
Someone thought the battery was dying because the percentage jumped from 70% to 20% instantly. I ran the built‑in Android battery stats and saw the hardware sensor reporting correctly, but the software overlay was corrupted. A simple factory reset and re‑flashing of the firmware fixed the display issue. No hardware replacement was needed.
Case 5 – Misdiagnosed motherboard issue
A client insisted the phone was dead and blamed the battery. I opened it, found the battery intact, but the main board showed corrosion on the USB‑charging pins. After cleaning and re‑soldering the pins, the phone powered on. The battery was fine; the real problem was the board’s charging circuit.
Diagnosis table
| Model | Problem reported | Real cause | Outcome |
|---|---|---|---|
| Sony Xperia Z5 | Sudden shutdown at 80% battery | Power Management IC failure | IC replaced – phone stable |
| Sony Xperia Z5 | Bulge and overheating while charging | Swollen battery | Battery replaced – overheating stopped |
| Sony Xperia Z5 | Rapid drain after recent replacement | Low‑quality third‑party battery | Genuine battery installed – normal drain |
| Sony Xperia Z5 | Battery percentage jumps erratically | Software calibration error | Firmware re‑flash – percentage accurate |
| Sony Xperia Z5 | Phone won’t turn on, battery seems dead | Corroded charging pins on motherboard | Pins cleaned & re‑soldered – device powers up |
Building trust – why a test first matters
In my workshop I never jump to “replace the battery” as the first answer. The Xperia Z5 has a tightly integrated power circuit, and many symptoms mimic a weak cell. That’s why I always run a voltage check, a load test, and inspect the board before ordering a new part. The cases above show that the battery was NOT the issue in three out of five situations.
Even when the battery is the problem, using a genuine or high‑quality replacement makes a huge difference. We offer a 6‑month warranty that covers swelling, so you’re protected if something goes wrong after we leave the shop.
For anyone searching for battery replacement in Tehran, the key is to find a technician who insists on diagnosis, not just a quick swap. That’s the philosophy at Digital Service.
FAQ
- How much does a Sony Xperia Z5 battery replacement cost? The standard price is 900,000 Tomans, which includes a genuine battery and labor.
- How long will the repair take? Typically between 1 and 2 hours, depending on whether additional board cleaning is needed.
- Why do batteries swell? Swelling occurs when internal cells generate gas due to age, over‑charging, or a manufacturing defect. It’s a safety risk, so we replace swollen cells immediately.
- Is it dangerous to keep using a swollen battery? Yes. A swollen cell can leak, burst, or damage the motherboard. Replace it as soon as you notice any bulge.
- What’s the difference between original and fake batteries? Original batteries match the exact capacity, voltage curve, and safety chips of the factory part. Fake batteries often have lower capacity, inconsistent voltage, and lack protection circuits, leading to rapid drain or swelling.
Final thoughts
Every time I finish a repair, I feel the same satisfaction – turning a frustrated user into someone who trusts their device again. The Xperia Z5 is a solid phone, but its battery chemistry can betray you if you ignore the signs. Whether the issue is a dead cell, a faulty IC, or just a software hiccup, the right diagnosis saves time and money.
If you’re in Tehran and your Z5 shuts down unexpectedly, bring it to Digital Service. We’ll test, explain, and fix only what truly needs replacement. No unnecessary parts, no hidden costs – just honest workmanship.
